3 Ton Forklift
Model No.:GZF30
Rated Capacity:3000kg
Max. Lift Height:3000mm
Overall Size(L/W/H):4150/1800/2450mm

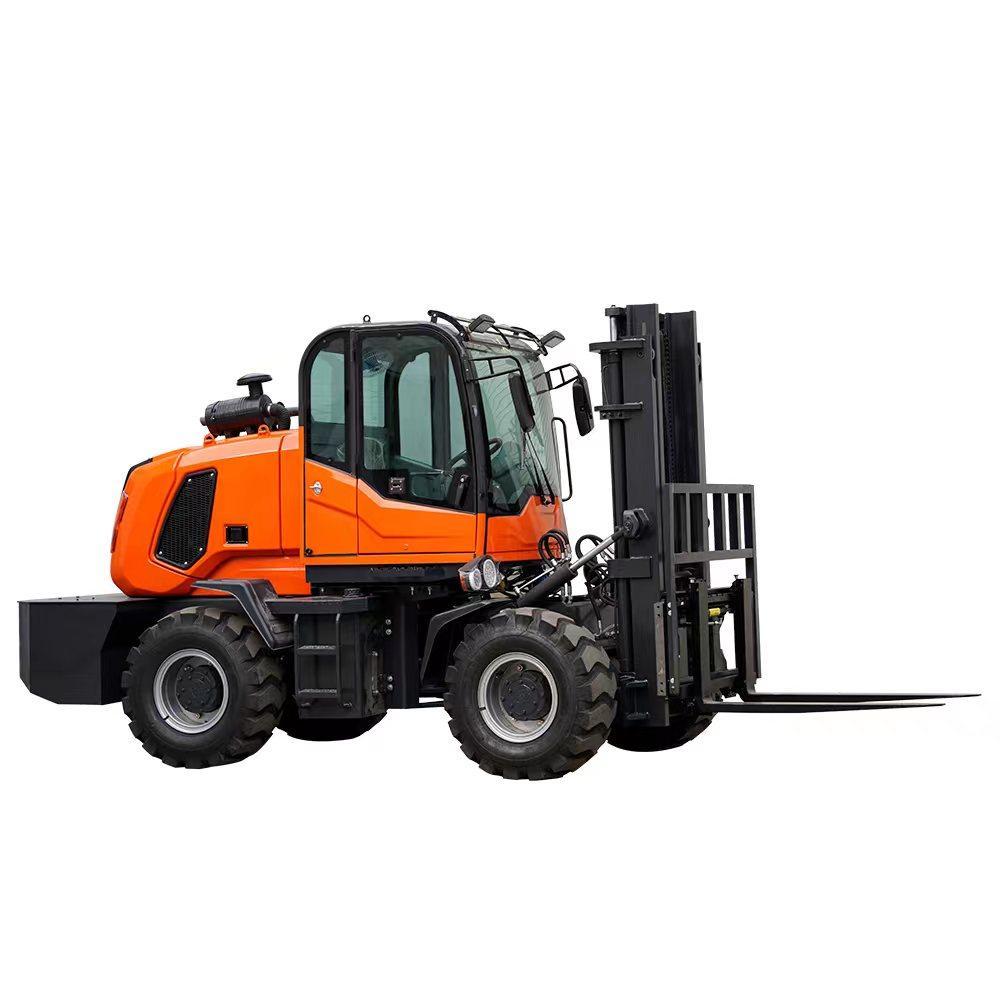

3T Front Wheel Steering Rough Terrain Forklift
The front wheel steering rough terrain forklift are also known as the front articulated off-road forklift. It is a uniquely designed vehicle with its articulation point situated at the front, employing front-wheel steering. It utilizes front-wheel steering, achieved by placing the articulation point at the front. This design enhances maneuverability, particularly in narrow workspaces, making it well-suited for environments requiring frequent turns.
Features:
Stability and Efficiency Across Various Scenes: The 3-ton off-road forklift, with outstanding stability and efficiency, is suitable for construction sites, warehouses, farms, and various scenes, meeting diverse material handling needs.
Exceptional Off-Road Performance for Rough Terrains: The 3-ton off-road forklift, with exceptional off-road capabilities, easily adapts to rough and uneven terrains, ensuring reliable operations in complex environments.
Standard:
| Model | GZF30 | |
| Description | 3T Front Wheel Steering Rough Terrain Forklift | |
| Configuration | Engine | YN490/42KW |
| Tyre | Pneumatic 20.5/70-16 | |
| Drive | Diesel | |
| Driveline | 4 Wheel Drive | |
| Specification | Overall Size(L/W/H) | 4150/1800/2450mm |
| Weight | 4390kg | |
| Minimum Ground Clearance | 240mm | |
| Mast Lowered Height | 2200mm | |
| Mast steel width | 160mm | |
| Fork Length | 1220mm | |
| Performance data | Rated Capacity | 3000kg |
| Max. Lift Height | 3000mm | |
| Tilt of Mast Fork Carriage Forward | 12° | |
| Turning Radius | 4500mm | |
| Gradeability | <35° | |
| Forklift Mast | 4m Forklift Mast(two stage ) | 4.5m Forklift Mast(two stage ) |
| 4.5m Forklift Mast(Three stage ) | 5m Forklift Mast(Three stage ) | |
| 6m Forklift Mast(Three stage ) | ||
| Forklift Attachments | Side shifters | Tilting fork |
| 1.8m Fork Extensions | Hanging Type Tilting bucket | |
| Tilting clamp | bucket with sleeve | |
| Drum clamp | Fork Positioners with Side shifters | |
| Others | Heater | Air conditioner |
