Model No.:GZR15
Rated Capacity:1500kg
Max. Lift Height:3000mm
Overall Size(L/W/H):3100/1350/2300mm

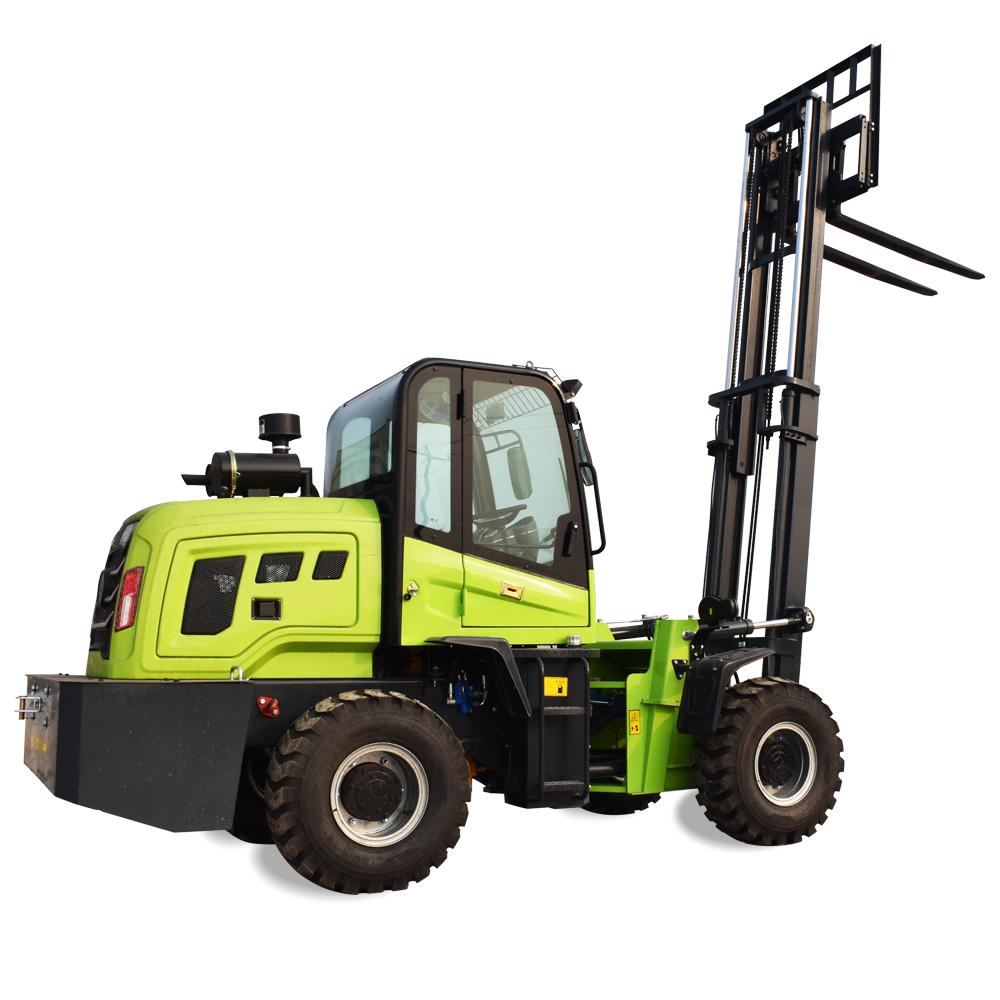

1.5T Rear Wheel Steering Rough Terrain Forklift
The rear wheel steering rough terrain forklift is also known as rear articulated off-road forklift. It is a uniquely designed vehicle with its articulation point situated at the rear, employing rear-wheel steering. The rear articulated off-road forklift utilizes rear-wheel steering, achieved by placing the articulation point at the rear. This design enhances flexibility in the steering of the rear wheels, contributing to outstanding maneuverability, especially in situations requiring high stability during material handling operations.
Features:
Outstanding Stability for Efficient Handling in Narrow Spaces: The 1.5-ton rear-steer off-road forklift excels in stability, particularly in narrow workspaces, ensuring efficient material handling.
Precision Operation for Light-Duty Work: The rear-steer design allows the 1.5-ton off-road forklift to perform exceptionally in light-duty scenarios, providing operators with easy and precise control for agriculture and small construction projects.
Standard:
Model | GZR15 | |
Description | 1.5T Rear Wheel Steering Rough Terrain Forklift | |
Configuration | Engine | YN490/42KW |
Tyre | Cushion Tyre 10.00-16 | |
Drive | Diesel | |
Driveline | 4 Wheel Drive | |
Specification | Overall Size(L/W/H) | 3100/1350/2300mm |
Weight | 2680kg | |
Minimum Ground Clearance | 230mm | |
Mast Lowered Height | 2200mm | |
Mast Steel Width | 148mm | |
Fork Length | 1220mm | |
Performance Data | Rated Capacity | 1500kg |
Max. Lift Height | 3000mm | |
Tilt of Mast Fork Carriage Forward | 12° | |
Turning Radius | 3100mm | |
Gradeability | <35° |
Forklift Mast | 4m Forklift Mast(two stage ) | 4.5m Forklift Mast(two stage ) |
4.5m Forklift Mast(Three stage ) | 5m Forklift Mast(Three stage ) | |
6m Forklift Mast(Three stage ) | ||
Forklift Attachments | Side shifters | Tilting fork |
1.8m Fork Extensions | Hanging Type Tilting bucket | |
Tilting clamp | bucket with sleeve | |
Drum clamp | Fork Positioners with Side shifters | |
Others | Heater | Air conditioner |
