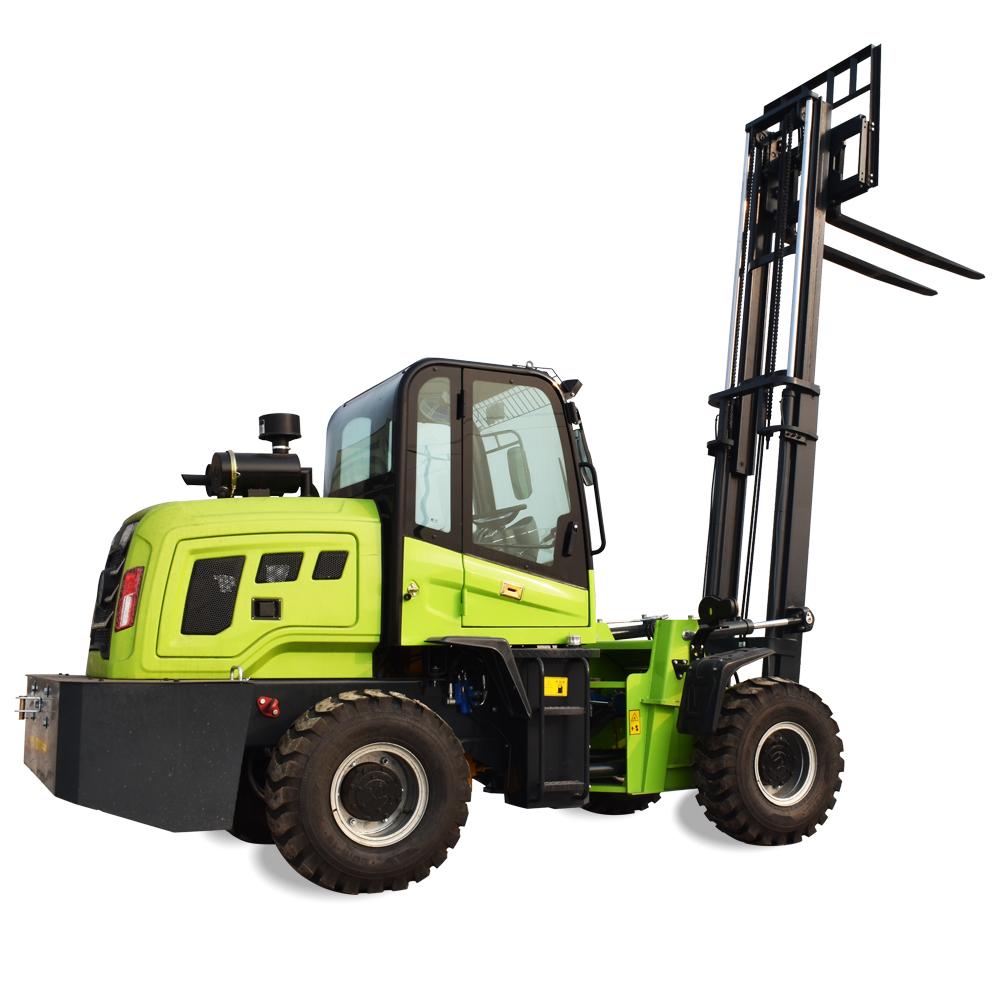

2.5T Basement Type Rear Wheel Steering Rough Terrain Forklift

Model No.:GZR25B

Rated Capacity:2500kg

Max. Lift Height:3000mm

Overall Size(L/W/H):3650/1800/2200mm

Product Details

2.5T Basement Type Rear Wheel Steering Rough Terrain Forklift

The rear wheel steering rough terrain forklift is also known as rear articulated off-road forklift. It is a uniquely designed vehicle with its articulation point situated at the rear, employing rear-wheel steering. The rear articulated off-road forklift utilizes rear-wheel steering, achieved by placing the articulation point at the rear. This design enhances flexibility in the steering of the rear wheels, contributing to outstanding maneuverability, especially in situations requiring high stability during material handling operations.

Features:

Balanced Stability and Agile Handling:
The 2.5-ton rear-steer off-road forklift strikes a balance between stability and agility, providing reliable performance in material handling tasks.
Efficient Maneuverability for Varied Environments: With its rear-steer design, the 2.5-ton off-road forklift ensures efficient maneuverability, making it well-suited for diverse environments such as construction sites and warehouses.

Standard:

Model GZR25B
Description 2.5T Rear Wheel Steering Rough Terrain Forklift
Configuration Engine YN490/42KW
Tyre Pneumatic Tyre 20.5/70-16
Drive Diesel
Driveline 4 Wheel Drive
Specification Overall Size(L/W/H) 3650/1800/2200mm
Weight 4050kg
Minimum Ground Clearance 235mm
Mast Lowered Height 2230mm
Mast Steel Width 160mm
Fork Length 1220mm
Performance Data Rated Capacity 2500kg
Max. Lift Height 3000mm
Tilt of Mast Fork Carriage Forward 12°
Turning Radius 3500mm
Gradeability <35°

Tips:
1. The above data is the standard configuration parameters, other requirements, please contact the sales.
2. With the update of our forklift, the configuration and parameters will be changed without notice.


Options:

Forklift Mast 4m Forklift Mast(two stage ) 4.5m Forklift Mast(two stage )
4.5m Forklift Mast(Three stage ) 5m Forklift Mast(Three stage )
6m Forklift Mast(Three stage )
Forklift Attachments Side shifters Tilting fork
1.8m Fork Extensions Hanging Type Tilting bucket
Tilting clamp bucket with sleeve
Drum clamp Fork Positioners with Side shifters
Others Heater Air conditioner

For more options, please contact with our sales.
