R-Type Rough Terrain Forklift

GZFR15 R | 1.5 Ton Forklift

Power：
Load Capacity：
Load Center：
Product Size：
Max Lift Height：
Product Weight：
WhatsApp
Message
Email

Product Overview

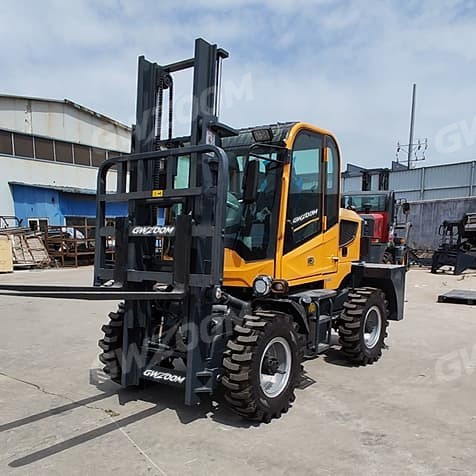

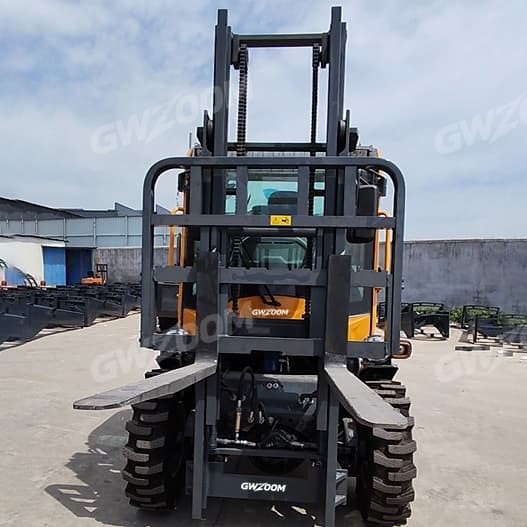

The GWZOOM GZFR15 R is a 1.5 ton outdoor forklift engineered with traditional steering geometry that mirrors conventional warehouse forklifts. As an all terrian forklift, it combines familiar control feel with off-road capability, allowing operators to transition seamlessly from indoor to outdoor applications. The R-Type series eliminates the learning curve associated with many rough terrain machines, making it the ideal choice for operations where multiple operators share equipment.

Technical Specifications

Key Technical Parameters
Model		GZFR15 R
Rated Load	kg	1500
Load Center Distance	mm	500
Wheelbase	mm	1450
Kingpin Height	mm	550
Minimum Ground Clearance (At the Mast)	mm	250
Track Width (Front/Rear)	mm	1150
Minimum Turning Radius (Outer)	mm	2800
Minimum Turning Radius (Inner)	mm	1400
Front Tire		10.00-16
Rear Tire		10.00-16
Engine		Yunnei 490
Engine Power/Speed	kw/rpm	37/2200-2400
Number of Transmission Gears		Front 2/ Rear 2
