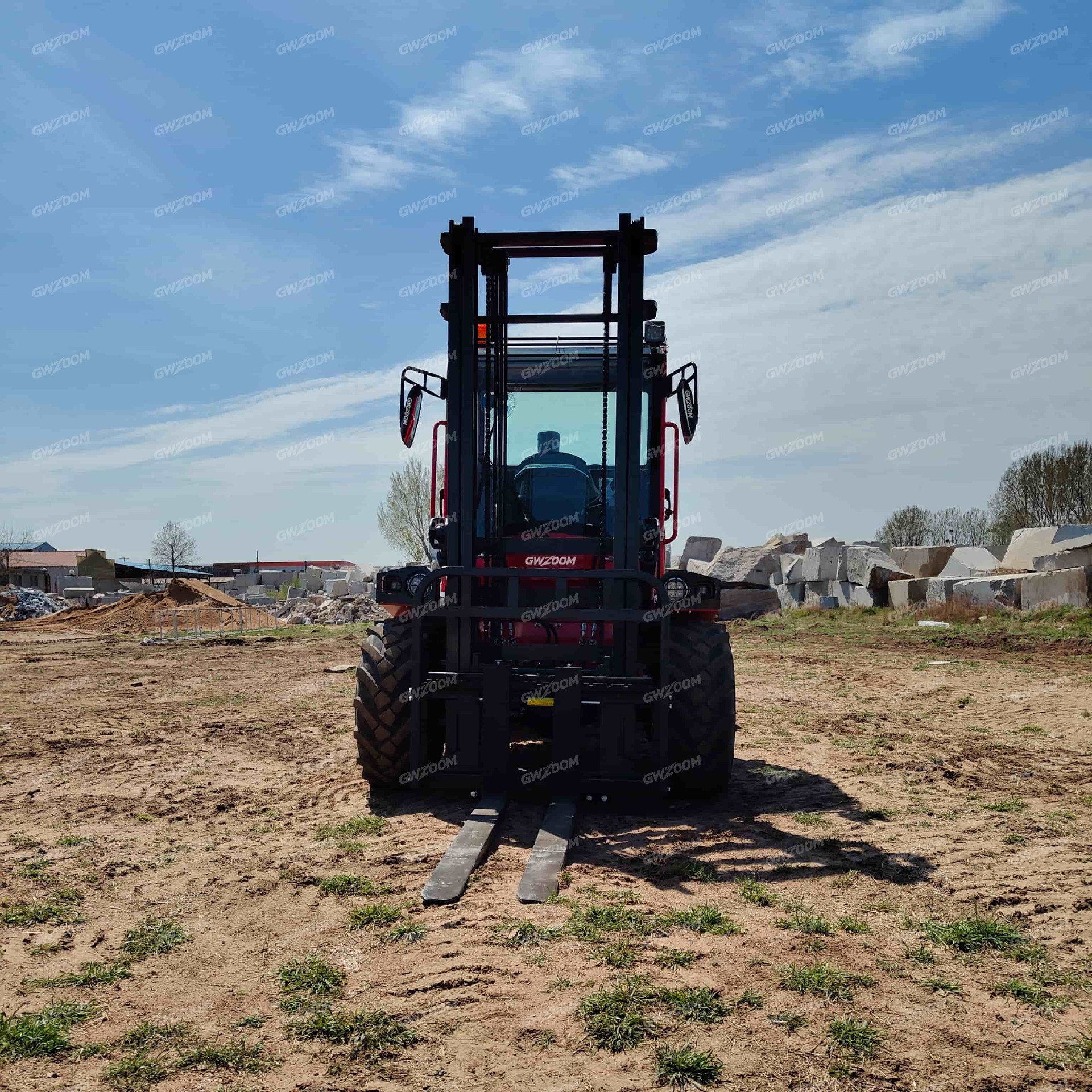

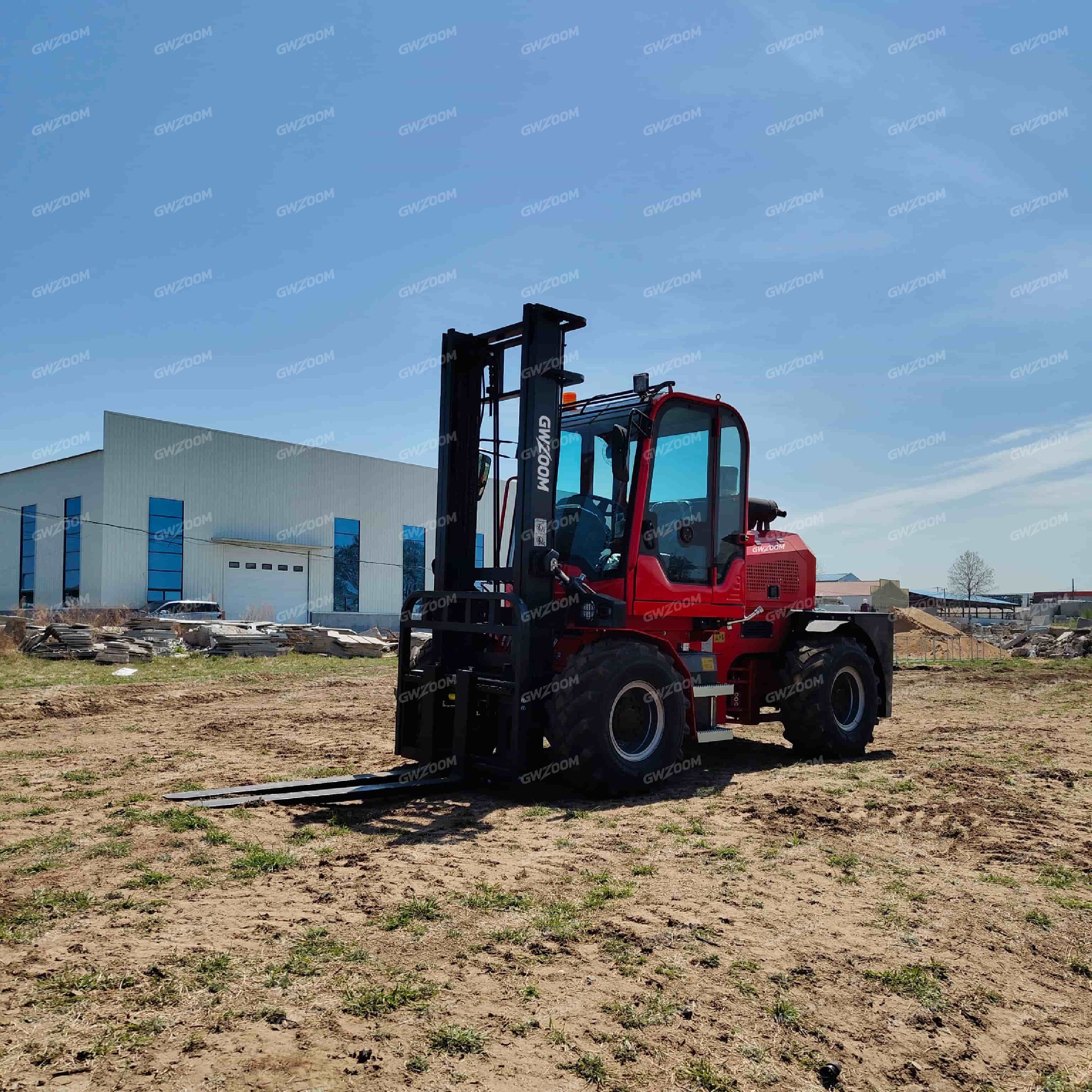

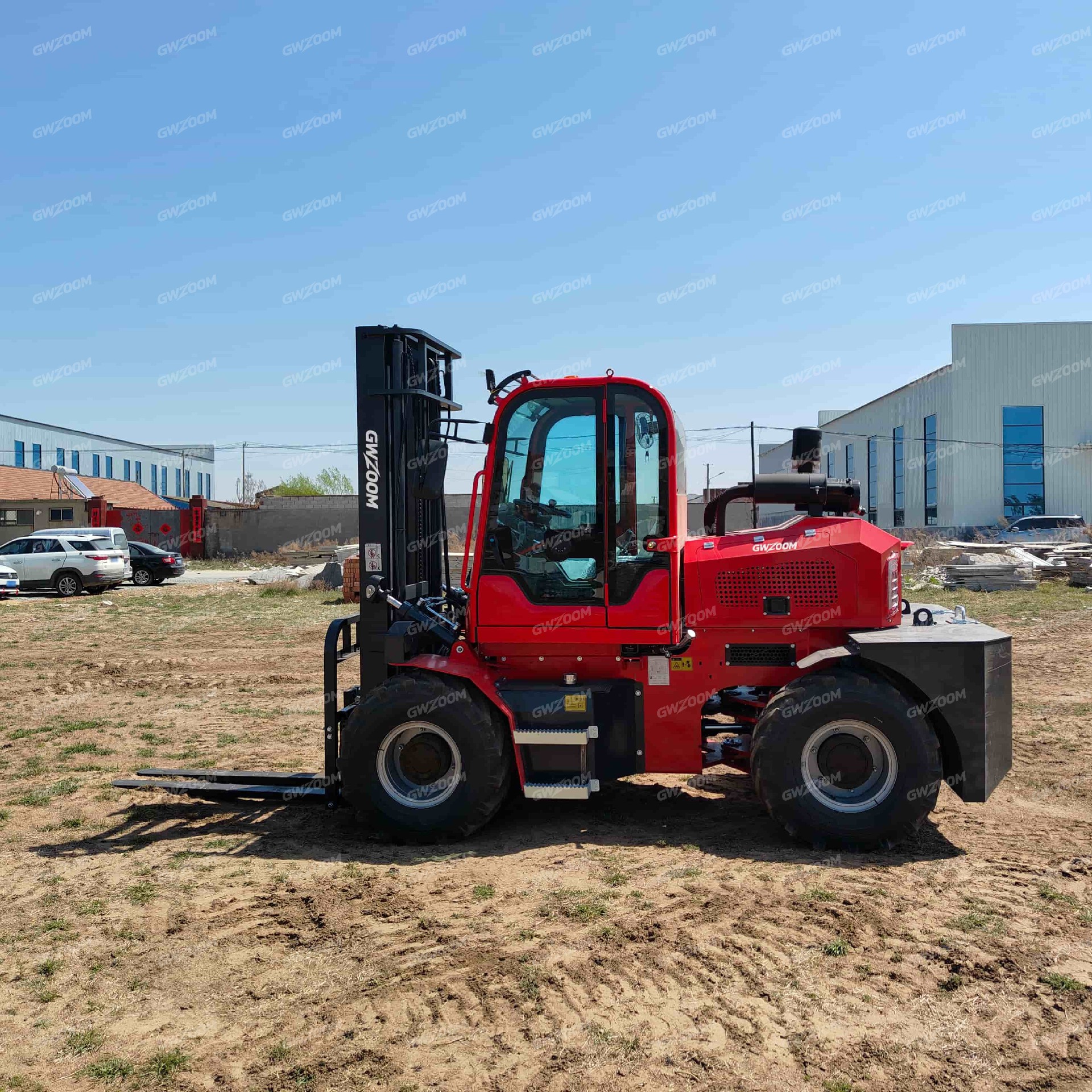

S-Type Rough Terrain Forklift

GZFR35 S | 3.5 Ton Forklift

Power：
Load Capacity：
Load Center：
Product Size：
Max Lift Height：
Product Weight：
WhatsApp
Message
Email

Product Overview

The GWZOOM GZFR35 S is a 3.5 ton fork lifts solution combining 4wd forklift capability with an ultra-compact short-body design. The S-Type series offers the tightest turning radius in its class while retaining the familiar steering feel traditional operators expect. This 4wd forklift handles the roughest terrain with agility that larger machines cannot match, making it ideal for orchards, vineyards, and congested construction sites.

Technical Specifications

Key Technical Parameters
Model		GZFR35 S
Rated Load	kg	3500
Load Center Distance	mm	500
Wheelbase	mm	1900
Kingpin Height	mm	620
Minimum Ground Clearance (At the Mast)	mm	260
Track Width (Front/Rear)	mm	1500
Minimum Turning Radius (Outer)	mm	3050
Minimum Turning Radius (Inner)	mm	1250
Front Tire		20.5/70-16
Rear Tire		20.5/70-16
Engine		WeiFang 490
Engine Power	kw	42
Number of Transmission Gears		Front 2/ Rear 2
