H-Type Rough Terrain Forklift

GZFR70 H | 7 Ton Forklift

Power：
Load Capacity：
Load Center：
Product Size：
Max Lift Height：
Product Weight：
WhatsApp
Message
Email

Product Overview

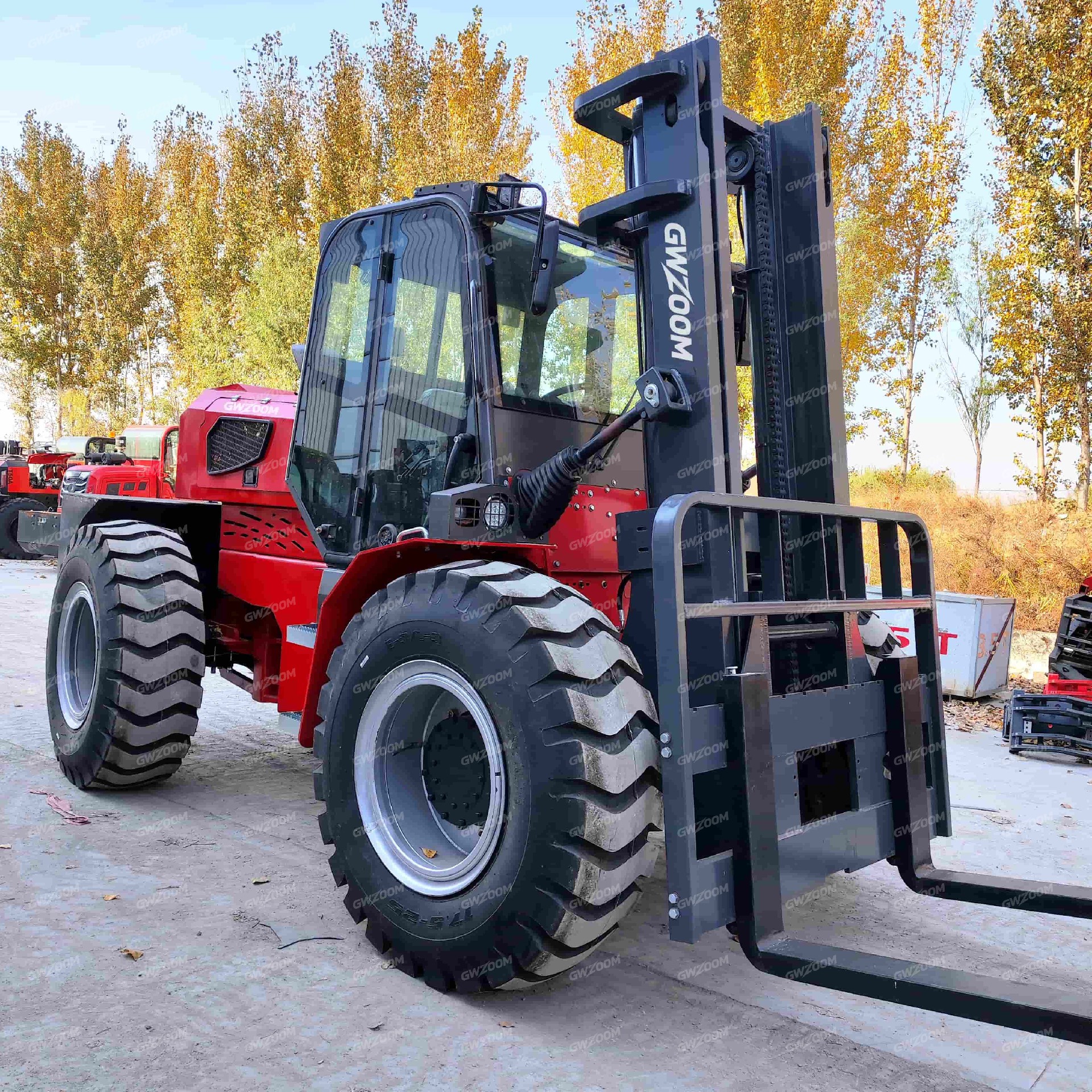

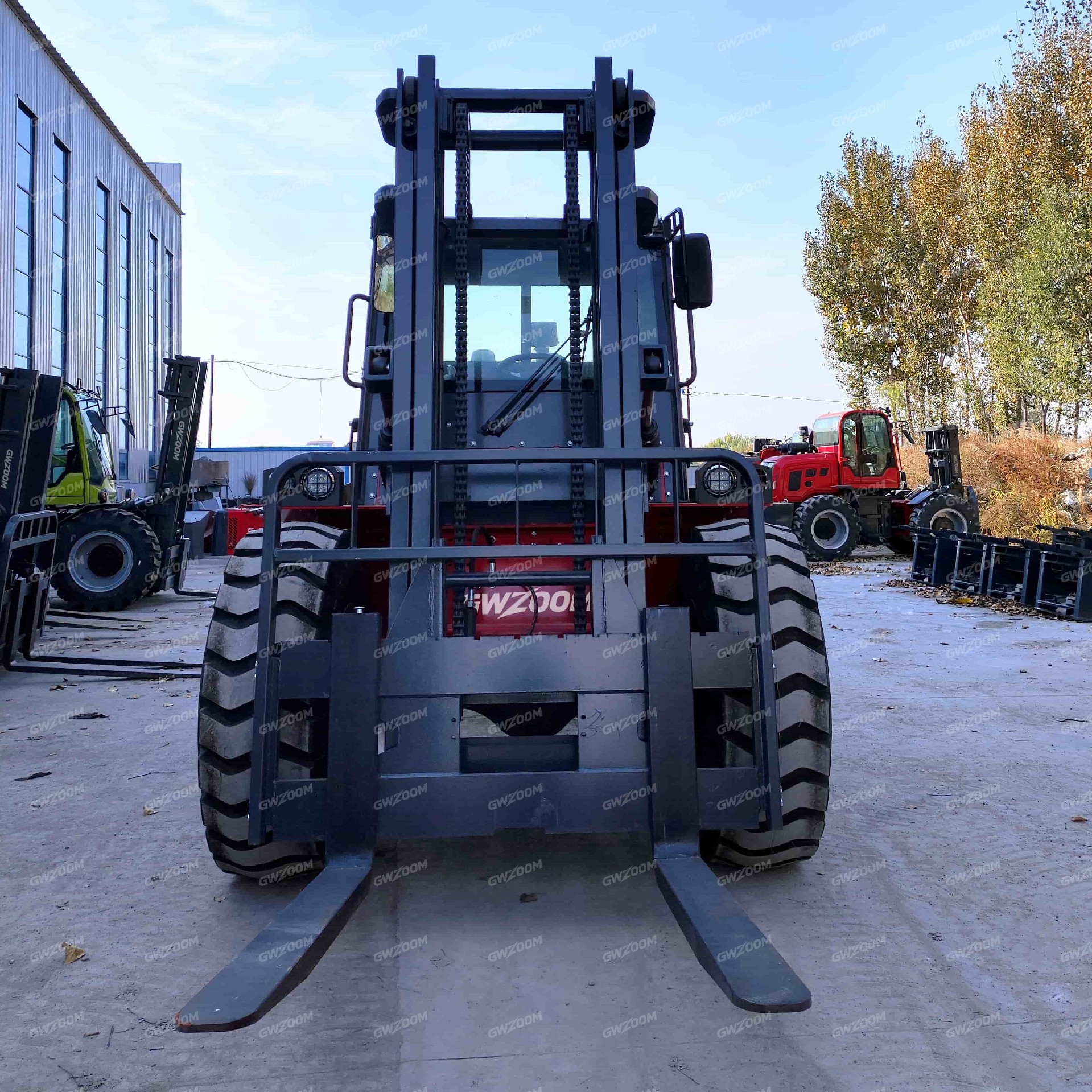

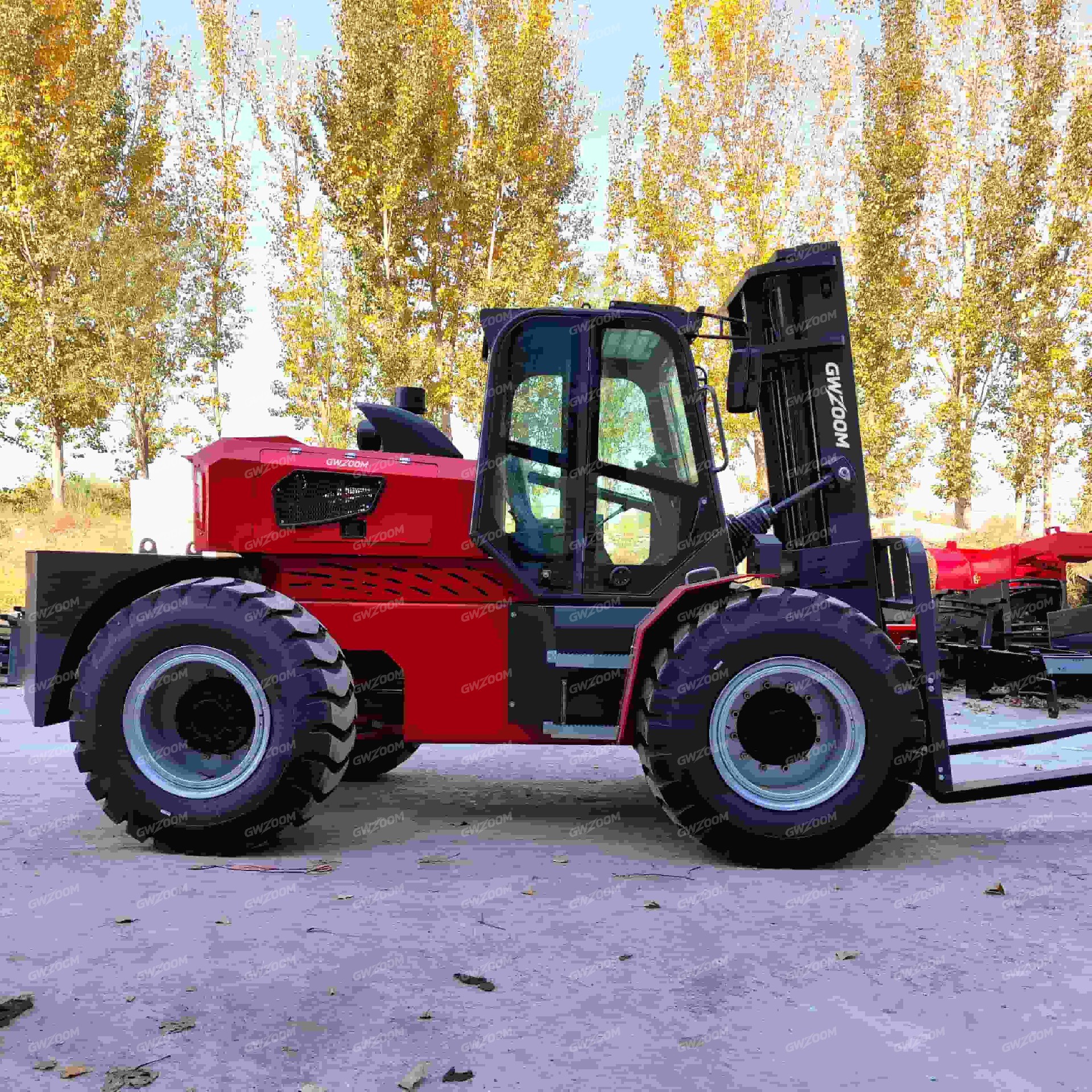

The GWZOOM GZFR70 H is a 7 ton container lift truck engineered as a heavy-duty all terrain forklift with heavy duty counterweight design. The H-Type series combines traditional multi-lever controls with a heavy duty chassis for exceptional stability when handling containers and oversized loads. This container lift truck delivers reliable performance in ports, intermodal yards, and heavy industrial facilities.

Technical Specifications

Key Technical Parameters
Model		GZFR70 H
Rated Load	kg	7000
Load Center Distance	mm	500
Wheelbase	mm	2600
Kingpin Height	mm	800
Minimum Ground Clearance (At the Mast)	mm	260
Track Width (Front/Rear)	mm	1800/1800
Minimum Turning Radius (Outer)	mm	5300
Minimum Turning Radius (Inner)	mm	3000
Front Tire		17.5-25
Rear Tire		17.5-25
Engine		XinChai 4102 Turbo
Engine Power	kw	85
Number of Transmission Gears		Front 2/ Rear 2
