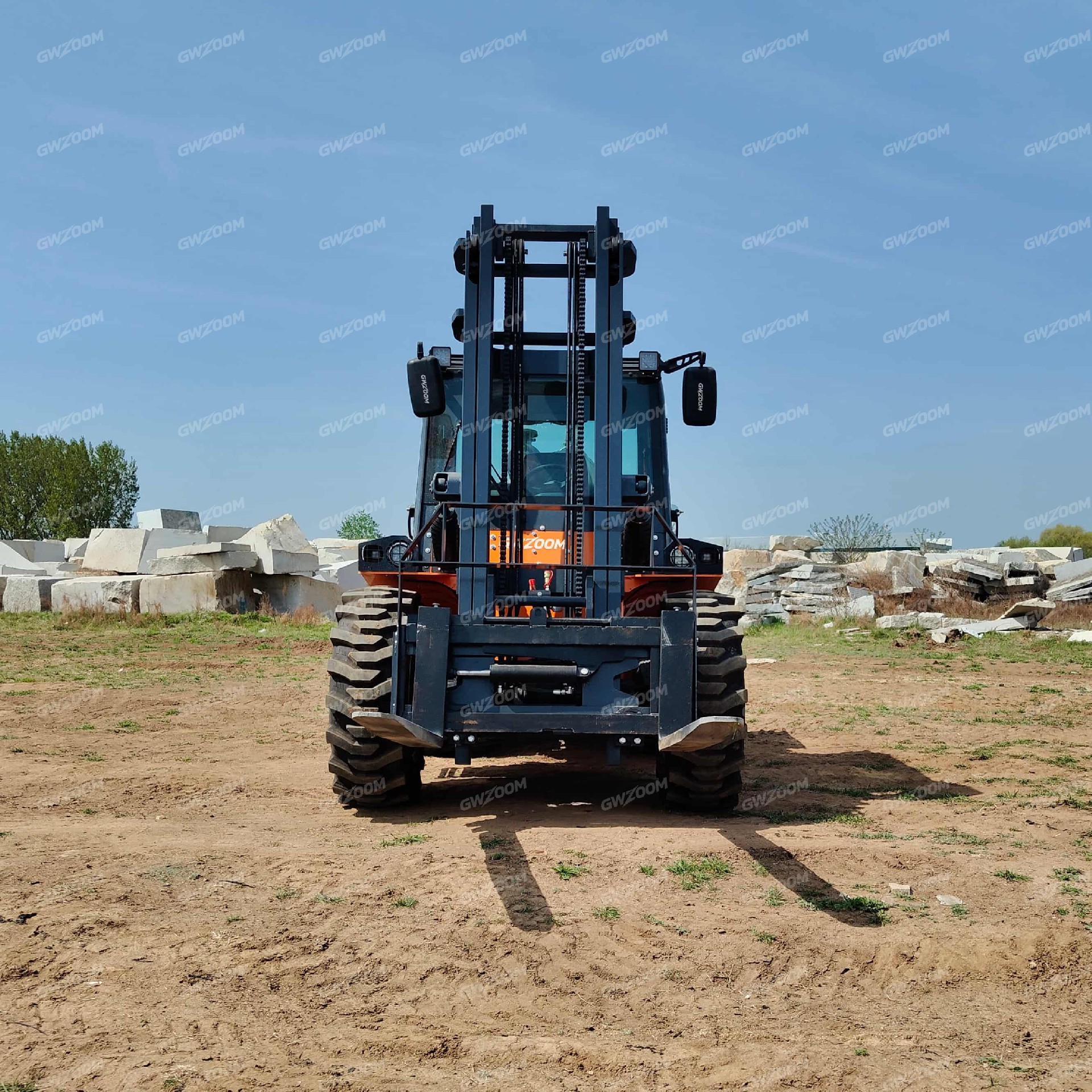

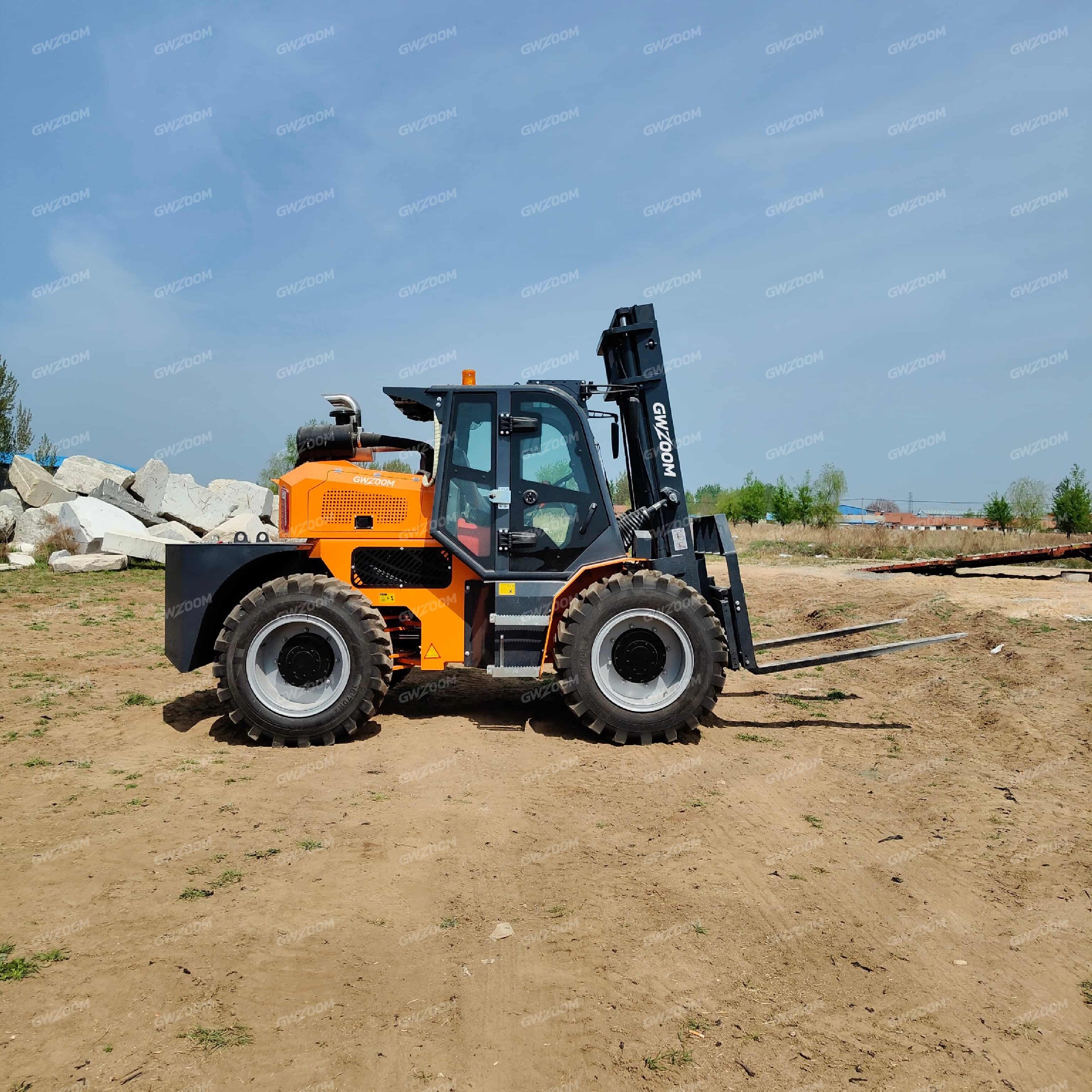

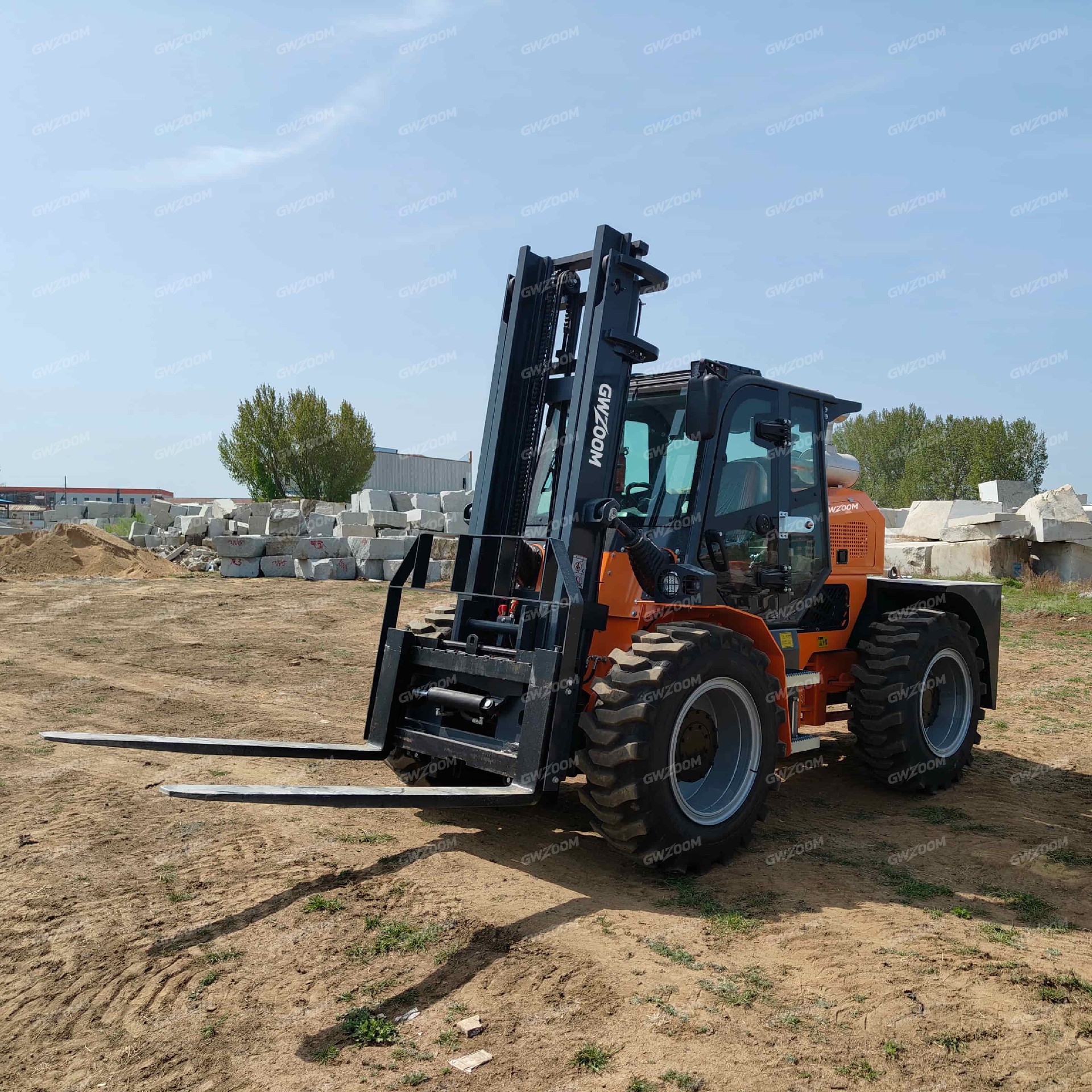

H-Type Rough Terrain Forklift

GZFR50 H | 5 Ton Forklift

Power：
Load Capacity：
Load Center：
Product Size：
Max Lift Height：
Product Weight：
WhatsApp
Message
Email

Product Overview

The GWZOOM GZFR50 H is a 5 ton automatic forklift (with advanced transmission options) featuring forklift 4WD capability and heavy duty counterweight design. The H-Type series delivers exceptional stability for heavy loads through its heavy duty chassis configuration, while multi-lever controls provide precise hydraulic operation. This forklift 4WD model is ideal for large-scale construction, mining, and infrastructure projects.

Technical Specifications

Key Technical Parameters
Model		GZFR50 H
Rated Load	kg	5000
Load Center Distance	mm	500
Wheelbase	mm	2300
Kingpin Height	mm	660
Minimum Ground Clearance (At the Mast)	mm	260
Track Width (Front/Rear)	mm	1700
Minimum Turning Radius (Outer)	mm	4600
Minimum Turning Radius (Inner)	mm	2500
Front Tire		16/70-24
Rear Tire		16/70-24
Engine		Yunnei 4102 Turbo
Engine Power	kw	78
Number of Transmission Gears		Front 2/ Rear 2
